High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A

Name: High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A
Brand: HeTai
Price: 1 USD

China High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A wholesale

Brand Name : HeTai

Model Number : 57BYGH321-04AG15

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Stepping gearbox motor

Step Accuracy : ± 5%

IP level : IP40

Temperature Rise : 80 ℃ Max

STEP ANGLE : 1.8°/STEP

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Rated tolerance torque : 8.0 Nm

Max momentary tolerance torque : 25 Nm

Dielectric Strength : 500VAC 1 minute

Contact Now

57BYGH231-04AG15 NEMA 23 Low Noise High Torque 1A Stepper Planetary Gearbox Motor

Model	Step Angle Accuracy	Dielectric Strength	Step Angle	Holding torque with gearbox (Nm)	Max Radial Force	Shaft axial load
57BYGH231-03AG6	±5%	500V AC 1minute	1.8	2.72	≤450N (10mm from front flange)	≤200N
57BYGH231-04AG15	±5%	500V AC 1minute	1.8	5.96	≤450N (10mm from front flange)	≤200N

Electrical Specification

STEP ANGLE	°/STEP	1.8
RATED VOLTAGE	V	9.6
CURRENT	A/PHASE	1.0
RESISTANCE	Ω/PHASE	9.6
INDUCTANCE	mH/PHASE	20
HOLDING TORQUE	kg.cm	10
INSULATION CLASS		B

*Products can be customized by special request.

Wiring Diagram

High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A

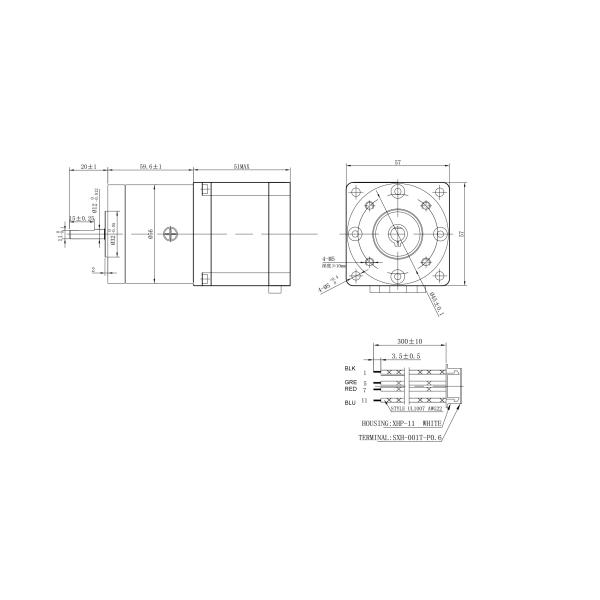

Mechanical Dimension

Gearbox Part Electrical Specification

Out diameter 56mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66

Mechanical Dimension

High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A

Gearbox Assembly

High Torque Nema 23 Planetary Gearbox Stepper Motor 57mm 5 nm 6 nm 1A

Planetary gearboxes can be powered by either electric motors, hydraulic motors, or petrol or diesel combustion engines.

The load from the sun gear is distributed to several planetary gears which can either be used to drive an outer ring or a shaft or spindle. The central sun gear takes a high-speed, low-torque input. It drives several rotating external gears which increases the torque.

The simple design is a highly efficient and effective way of transferring power from a motor to an output. Approximately 97% of the energy input is delivered as an output.
